CP Series - USB Avionics Interface Modules & ATE Systems

USB Avionics Interface Modules

Airborne Modules

We manufacture an extensive range of engineering test USB interface modules providing data bus simulation, monitoring and acquisition via a desktop or laptop PC. These can be easily used to acquire data during flight tests, as the modules have opto-isolated receiver options and are powered from the PCs USB port. Protocols include ARINC-429/575, ARINC-561/568, ARINC-573/717, ARINC-407 (400Hz synchro), Encoded Altitude (Gillham), discrete, resistance simulation, MODBUS & CAN 2.0B (J1939 and CANOpen).

Key features include complex multi-cycle transmitter tables, simultaneous real time full bandwidth acquisition and bus monitor, real time bit error injection & word injection/replacement, programmable bit rate, amplitude and inter word gap, and simulated instrument displays. These modules are provided with our comprehensive Bus Inspector software applications.

We supply modules of this type to companies such as:

Phoenix Aerospace Ltd, BAe Systems, NTPS, Cobham, Airbus Helicopters, Boeing, FR Aviation, Garmin, HM Governments Queens Flight, Lufthansa, Penny & Giles Aerospace Ltd, Raytheon Aircraft Services, Royal Air Force (RAF), Sikorsky Helicopters, Agusta Westland Helicopters, Zodiac Aerospace.

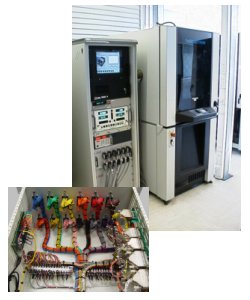

ATE Systems utilising PXI, Compact PCI, VXI & VME Architectures

Airborne Modules

We provide a complete ATE system design, test, integration and maintenance service, utilising the latest COTS architectures.

Typical test systems include, Engine Controllers, Industrial Sensors, Air Data Computers and Flight Recorders. Although COTS cards and adapters address the majority of requirements, we often encounter complex bespoke interfaces or timing critical functions, for which we design custom solutions.

Functions incorporated have included ARINC 429, 561, 568, 573, 575, 717, ARINC 407 (Synchro), MIL-STD-1553B, GPIB, USB, RS232, RS485, RS422, NMEA-0183, Ethernet, I2C, I2S & SPI, CAN (J1939, CANopen, ARINC-825), analogue I/O (16 & 24 bit), +28V discrete I/O (opto-isolated), programmable resistance, resistance simulation (SAT & TAT), analogue and digital I/O bespoke signal conditioning, complex high speed switching applications, atmospheric pressure simulation, high pressure simulation, programmable power supplies, environmental chamber control.

Product List - USB Avionics Interface Modules & ATE Systems

Product NameProduct DescriptionRevisionLink
CP7026ARINC-429 to USB Converter Modulelink icon
CP7027ARINC-407 to USB Converter Module (Reader)link icon
CP7028ARINC-407 to USB Converter Module (Generator)link icon
CP7029Encoded Altitude to USB Converter Module (Reader)link icon
CP7030Encoded Altitude to USB Converter Module (Generator)link icon
CP7031Discrete Signal to USB Converter Module (Reader)link icon
CP7032Discrete Signal to USB Converter Module (Generator)link icon
CP7034ARINC-429 to USB Converter Module (R2T2)link icon
CP7035RS-422 (MODBUS) to USB Converter Module (R1T1)link icon
CP7036ARINC-429 to USB Avionics Interface Module (Multi Protocol)1link icon
CP7039Nano429 ARINC-429 to USB Converter Module1link icon

Please click here to see a full product listing.
